Mannock Therm Laminate-Kraft
High performance fibre-free Insulated Plasterboard
Product Code: MAN-TLKEstimated delivery in 3-5 working days
Free delivery for orders over £350.00
ADDITIONAL INFORMATION
• Brand
Mannock Therm Laminate-Kraft
• Length
2400mm
• Width
1200mm
• Thickness
37.5mm - 72.5mm
• Material
PIR foam with complete kraft paper facings and plasterboard
• Edge Profile
Square edge
• R-Value
1.70 - 3.30 m² K/W
• Thermal Conductivity
0.022 W/mK
• Facing
Kraft paper on one side, plasterboard on the other

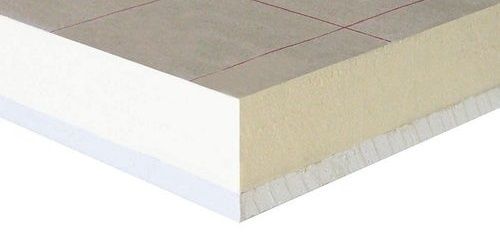

The Mannok Therm Laminate-Kraft (MLK) PIR insulation board features high-performance PIR foam with kraft paper facing and bonded plasterboard, providing excellent thermal resistance and reducing heat loss. Its versatile application makes it ideal for use under rafters or in dry-lining, effectively eliminating thermal bridging.
• High Performance
Provides excellent thermal resistance with a low thermal conductivity of 0.022 W/mK.
• Versatile Application
Suitable for use under rafters or in dry-lining to eliminate thermal bridging.
• Durable Construction
Made from high-quality PIR foam with kraft paper facing and bonded plasterboard.
• Easy Installation
Features a square edge profile for straightforward fitting.
• Effective Insulation
Available in various thicknesses to meet different insulation requirements.
• BBA Certified
Certificate number 07/4444
• Irish Agreement Board (IAB)
Certificate number 05/0223
• CE Marked
Complies with the harmonised standard EN 13165
What is the Mannok Therm Laminate-Kraft (MLK) PIR insulation board made of? It is made of high-performance PIR foam with a kraft paper facing on one side and plasterboard bonded to the other.
What are the available thicknesses for this insulation board? The board is available in thicknesses ranging from 37.5mm to 72.5mm.
What is the thermal conductivity of the Mannok Therm Laminate-Kraft (MLK) PIR insulation board? The thermal conductivity is 0.022 W/mK.
What are the typical applications for this insulation board? It is ideal for use under rafters to reduce heat loss and eliminate thermal bridging, as well as in dry-lining applications.
What certifications does this product have? It holds certifications from the British Board of Agreement (BBA), and the Irish Agreement Board (IAB), and is CE-marked.
How is the board installed? It can be installed using dot-and-dab adhesive or mechanical fixings.
