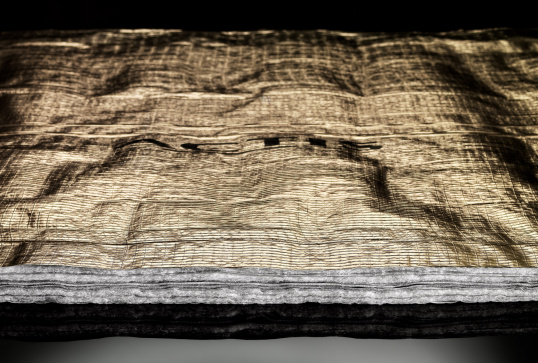

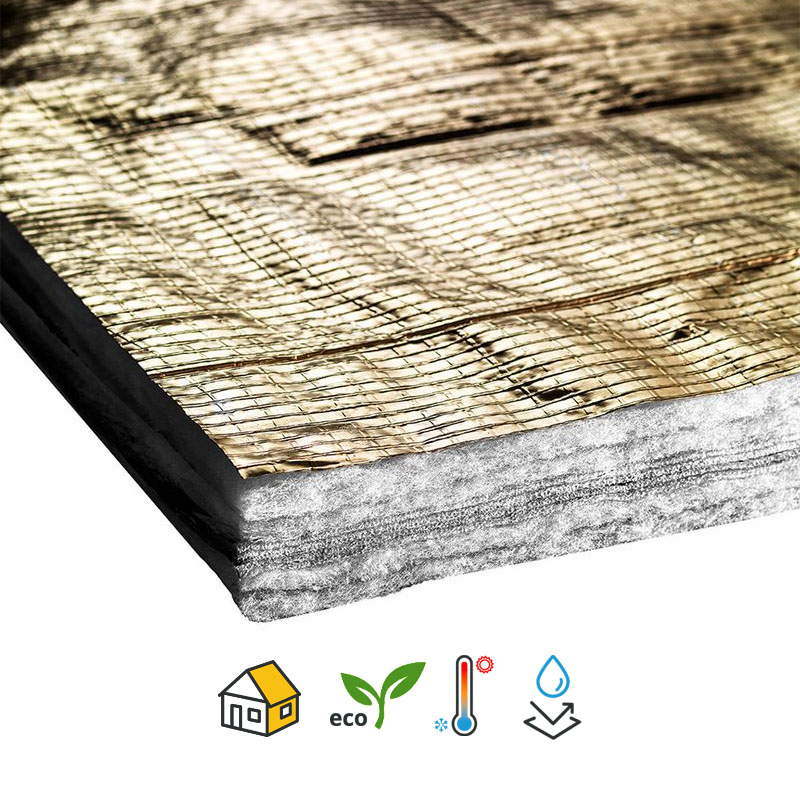

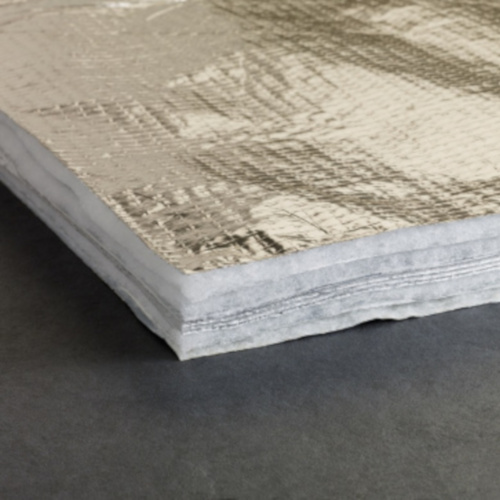

Actis Hybrid H-Control
Multifoil Insulation Slab with vapour control
6250mm x 1600mm x 45mm
£72.34 (£86.81 inc VAT)
Product Code: ACT-HHCONEstimated delivery in 3-5 working days
Free delivery on orders over £350.00 (excl. VAT)
ADDITIONAL INFORMATION
• Brand
Actis Hybrid H-Control
• Length
6250mm
• Width
1600mm
• Thickness
45mm
• Material
Multiple layers including coated metal polyolefin films, polyolefin foams, and polyester wadding.
• Edge Profile
No specific edge profile
• R-Value
1.90 m² K/W
• Thermal Conductivity
0.033 W/mK
• Facing
Reflective coated metal reinforced polyolefin films
The Actis HControl Hybrid is designed to provide both insulation and vapour control in a single product, enhancing thermal efficiency and reducing installation steps.
• Dual Functionality
Acts as both a vapour control layer and insulation, simplifying the installation process.
• High Thermal Performance
Offers a core R-value of 1.90 m²K/W and an R-value of 3.20 m²K/W with air gaps, ensuring excellent thermal resistance.
• Low Thermal Conductivity
Lightweight and rigid boards are convenient to handle and fit into cavity walls.
• Airtight and Watertight
Designed to be airtight and watertight, preventing air and moisture infiltration.
• Reflective Facing
Faced on both sides with reflective coated metal reinforced polyolefin films, enhancing thermal performance.
• Durability
Tested for durability after ageing, ensuring long-term performance.
• Flexible and Easy to Install
Lightweight and easy to handle, making installation straightforward and efficient.
• BM TRADA Q-Mark
Registered within the BM TRADA Q-Mark Scheme for Construction Products.
• ISO 9869
Certified for in-situ thermal performance.
• EN 13984
Complies with the European standard for flexible sheets for waterproofing.
• EN 16012
Meets the European standard for thermal insulation products for buildings.
What materials are used in Actis HControl Hybrid? The product is made up of coated metal polyolefin films, polyolefin foams, and polyester wadding.
How should Actis HControl Hybrid be installed? It should be installed with overlapping joints (50-100 mm) and sealed with ACTIS Isodhesif tape. The embossed copper-coloured film should face inwards (towards the warm side of the building).
What certifications does Actis HControl Hybrid have? It is certified by BM TRADA Q-Mark, ISO 9869, EN 13984, and EN 16012.
What is the thermal conductivity of Actis HControl Hybrid? The thermal conductivity is 0.033 W/m·K.
What is the R-value of Actis HControl Hybrid? The core R-value is 1.90 m²K/W, and it has an R-value of 3.20 m²K/W with air gaps.
DOWNLOADS - JN 2763 Actis HControl Hybrid Datasheet
