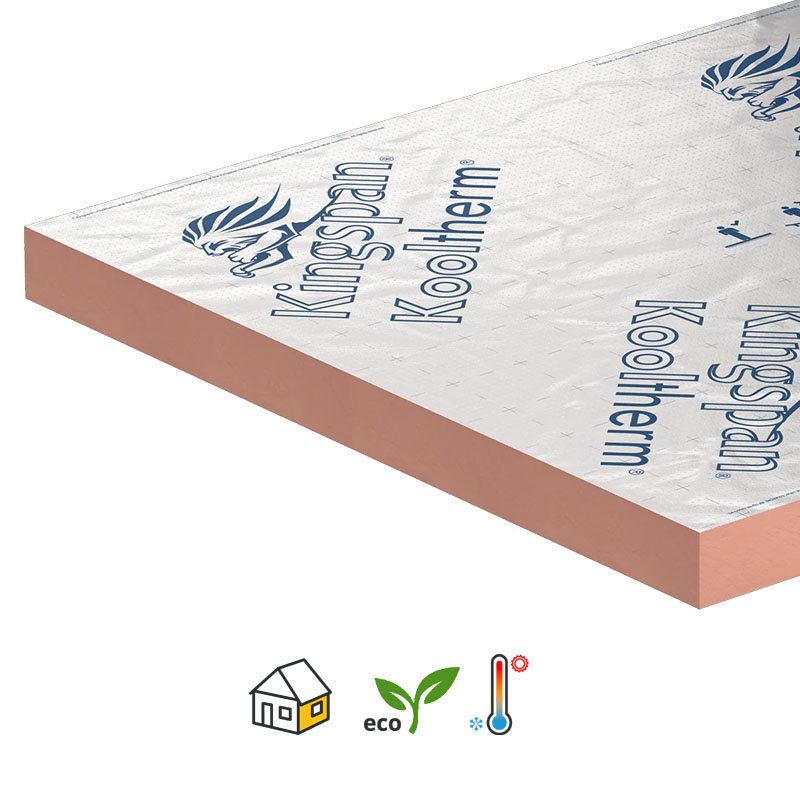

Kingspan Kooltherm K112 Framing Board
Premium performance insulation for timber and steel framing systems
Product Code: KING-K112Estimated delivery in 3-5 working days
Free delivery for orders over £350.00
ADDITIONAL INFORMATION
• Brand
Kingspan Kooltherm K112 Framing Board
• Length
2400mm
• Width
1200mm
• Thickness
25mm - 150mm
• Material
Premium performance rigid thermoset phenolic insulation
• Edge Profile
Square edge
• R-Value
1.32 - 7.89 m² K/W
• Thermal Conductivity
0.019 W/mK
• Facing
Low emissivity composite foil on both sides
The Kingspan Kooltherm K112 Framing Board is designed to provide high-performance insulation for timber and steel framing systems, offering superior thermal efficiency with a slim profile.
• Thin Insulation: One of the thinnest commonly used insulations for timber and steel frame walls.

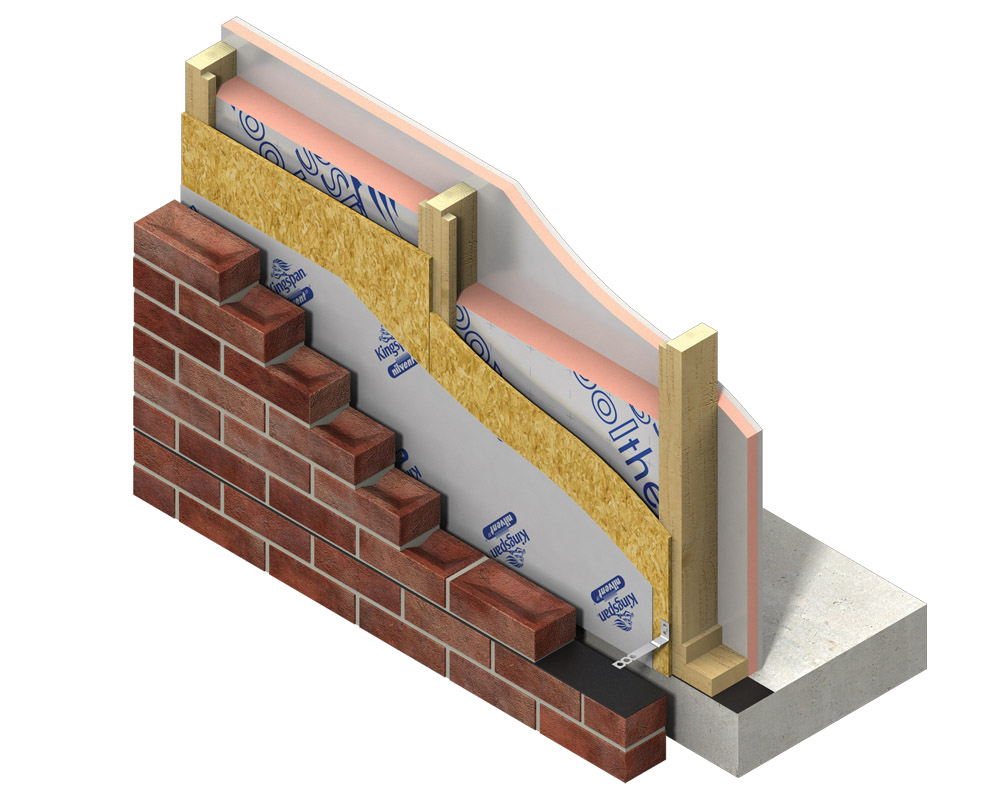

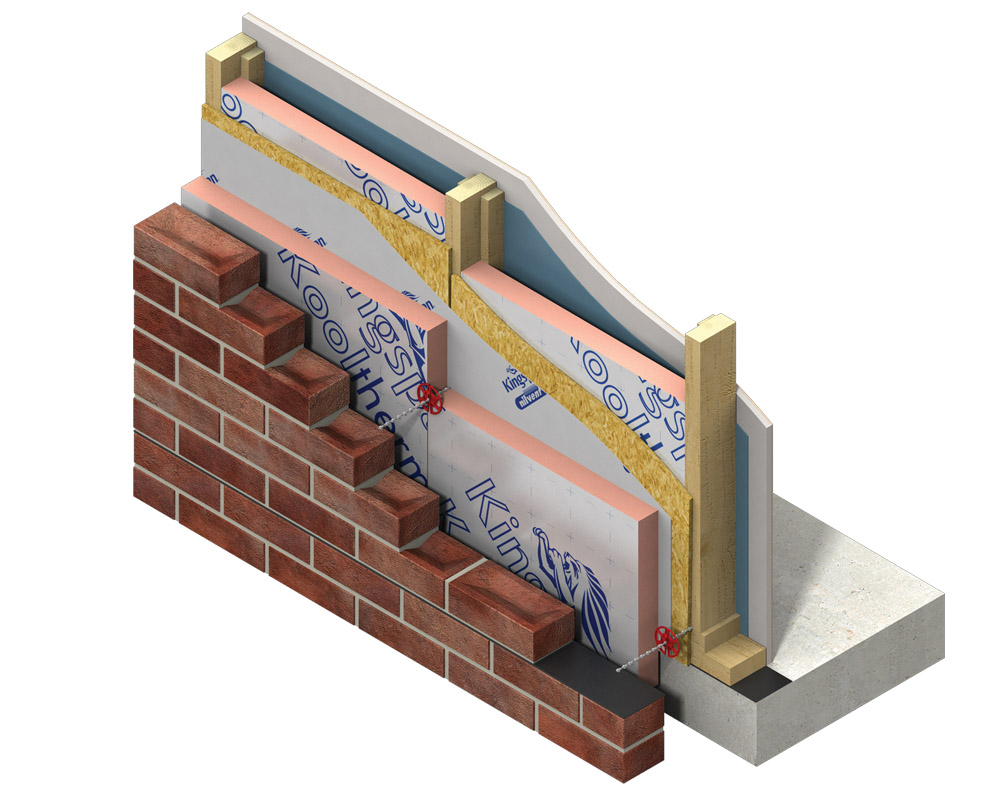

• Versatility: Can be used between studs or as an insulating sheathing.
• Modern Methods of Construction (MMC): Ideal for MMC projects.
• Lightweight: Easy to handle and install.
• ISO 9001:2015 (Quality management systems).
• ISO 14001:2015 (Environmental management systems).
• ISO 45001:2018 (Occupational health and safety management systems).
• ISO 50001:2018 (Energy management systems).
What is phenolic insulation? Phenolic insulation, like our Kooltherm range, is the most thermally efficient insulation commonly used. It consists of a rigid thermoset foam core sandwiched between two facing elements, such as a low-emissivity composite foil. Choosing phenolic insulation allows you to achieve low target U-values with minimal insulation thickness.
How is Kooltherm made? Kooltherm’s rigid thermoset foam forms an insulating core between two facing elements. Wet foam insulation mix is added to the bottom layer of facing, which expands to meet the top layer. As it dries, the foam bonds to the facings, and after curing, the insulation boards are cut into the necessary sizes.
Difference between Kooltherm and Therma: Kooltherm is the thinnest commonly used insulation board for specific U-values. Therma is a range of PIR insulation boards, not as thermally efficient as Kooltherm.
What is the U-value of Kingspan insulation? U-value represents the insulating effectiveness of a building element (e.g., roof, wall, or floor). Our technical team can calculate the U-value for your project based on specific details.
