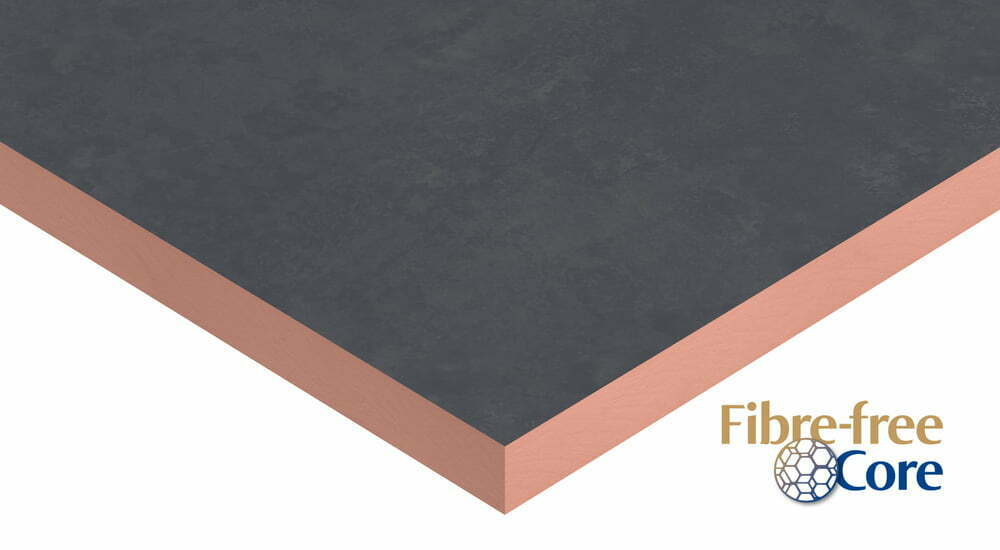

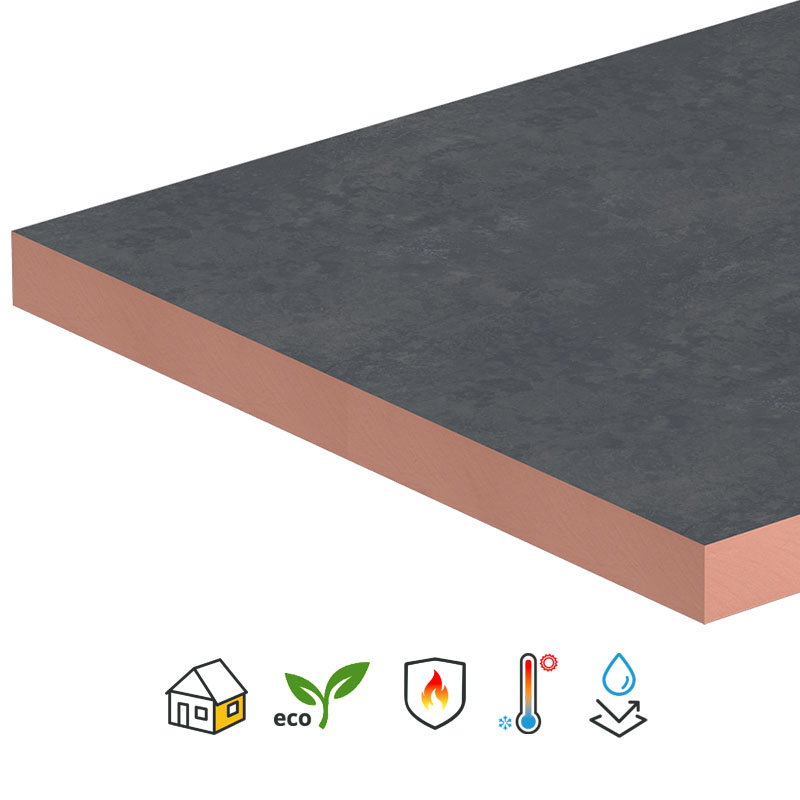

Kingspan Kooltherm K106
Premium performance Cavity Insulation Slab
Product Code: KING-K106Estimated delivery in 3-5 working days
Free delivery for orders over £350.00
ADDITIONAL INFORMATION
• Brand
Kingspan Kooltherm K106 Cavity Board
• Length
1200mm
• Width
450mm
• Thickness
90mm and 115mm
• Material
Rigid thermoset fibre-free phenolic insulation core
• Edge Profile
Rebated edge
• R-Value
4.70 and 5.55 m² K/W
• Thermal Conductivity
0.018 - 0.019 W/mK
• Facing
Water-tight, vapour-open polypropylene fleece outer facing

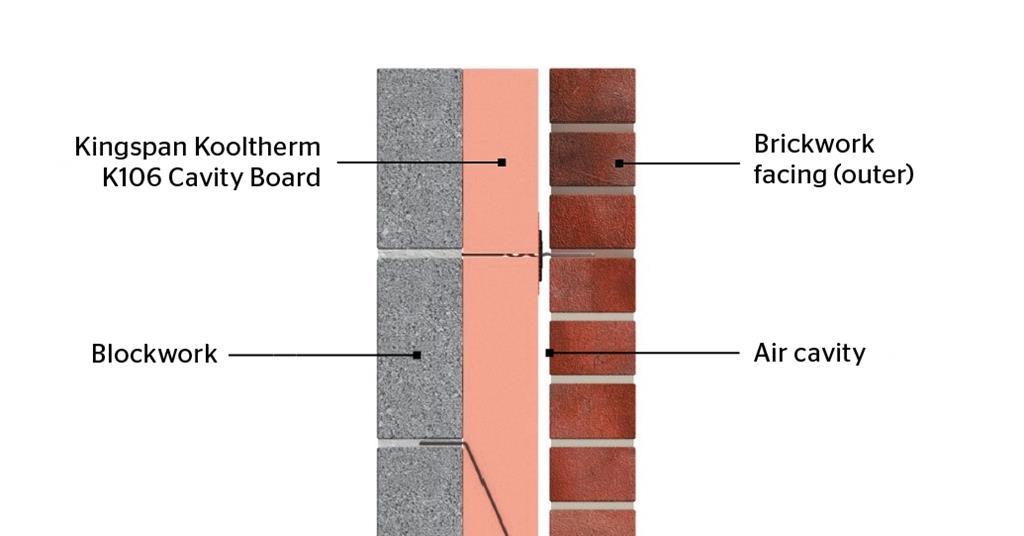

The Kingspan Kooltherm K106 Cavity Board is designed to provide high-performance thermal insulation for cavity wall applications.
• Thermal Properties
Low thermal conductivity for high R-values.
• Moisture Resistance
Water-tight, vapour-open facing reduces moisture penetration.
• Easy to Install
Lightweight and rigid boards are convenient to handle and fit into cavity walls.
• Fire Performance
Good fire resistance with minimal flame spread.
• Durability
High compressive strength and long-lasting performance.
• BBA Certified
Ensures compliance with industry standards.
• ISO Certifications
ISO 9001: Quality Management Systems.
ISO 14001: Environmental Management Systems.
ISO 45001: Occupational Health and Safety Management Systems.
ISO 50001: Energy Management Systems.
ISO 37301: Compliance Management Systems.
What is phenolic insulation? Phenolic insulation, like the Kooltherm range, is a highly thermally efficient insulation made from a rigid thermoset foam. It provides excellent thermal performance with minimal thickness.
How is Kooltherm made? Kooltherm is made by adding a wet foam insulation mix to the bottom layer of facing, which then expands to meet the top layer. The foam bonds to the facings as it dries, and is then cured and hardened under pressure before being cut into boards.
What is the difference between Kooltherm and Therma? Kooltherm is a range of advanced phenolic insulation, known for being the thinnest commonly used insulation board for specific U-values. Therma, on the other hand, is a range of PIR insulation boards, which are less thermally efficient than Kooltherm.
What is the U-value of Kingspan insulation? The U-value is the inverse of the sum of the thermal resistances of the layers that make up a building element. It includes adjustments for fixings or air gaps. Kingspan insulation itself doesn’t have a U-value; it depends on the specific construction details.
