Kingspan Kooltherm K107 Pitched Roof Board
High-Perofrmance Insulation Roof Board
Product Code: KING-K107Estimated delivery in 3-5 working days
Free delivery for orders over £350.00
ADDITIONAL INFORMATION
• Thermal Conductivity: 0.019 W/mK across all thicknesses.
• Length: 2400 mm
• Width: 1200 mm
• Thicknesses Available: Ranging from 25 mm to 150 mm.
• Weight (at 100 mm thickness): Approximately 3.86 kg/m².
• Reaction to Fire (Euroclass): Under System 4 AVCP, Kooltherm K107 has a Euroclass rating of F.
• Compressive Strength: Typically exceeds 100 kPa.
The Kingspan Kooltherm K107 Pitched Roof Board provides superior thermal insulation, reducing heat loss and improving energy efficiency in buildings. Its lightweight and easy-to-install design make it ideal for both new constructions and retrofits.

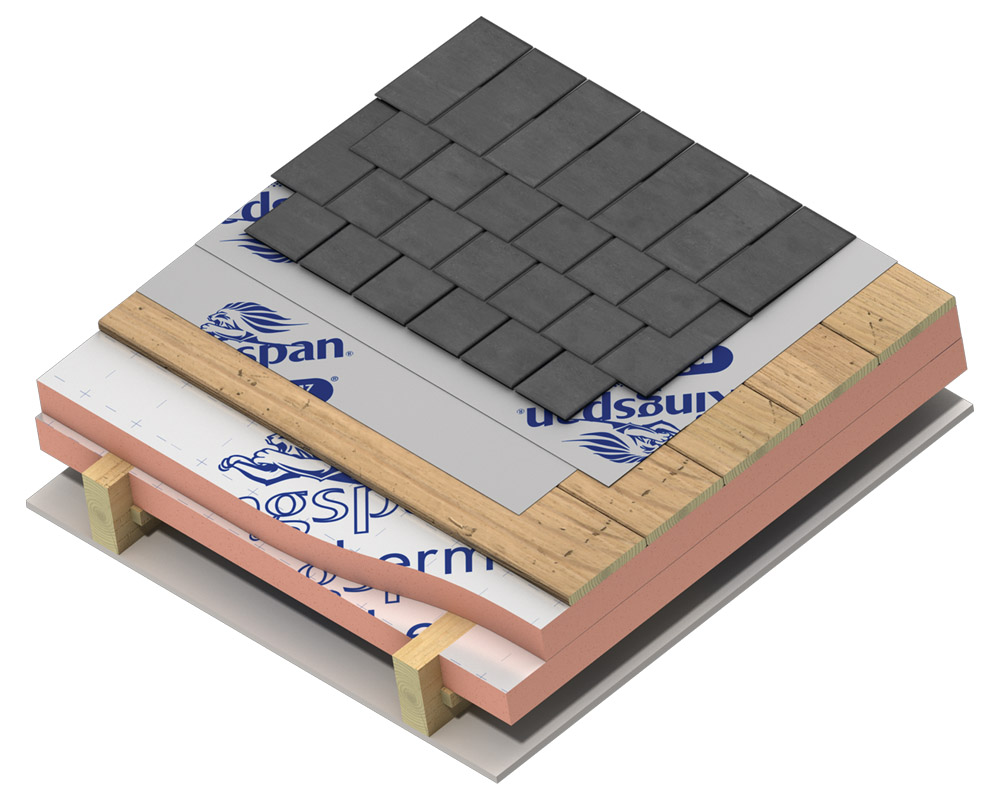

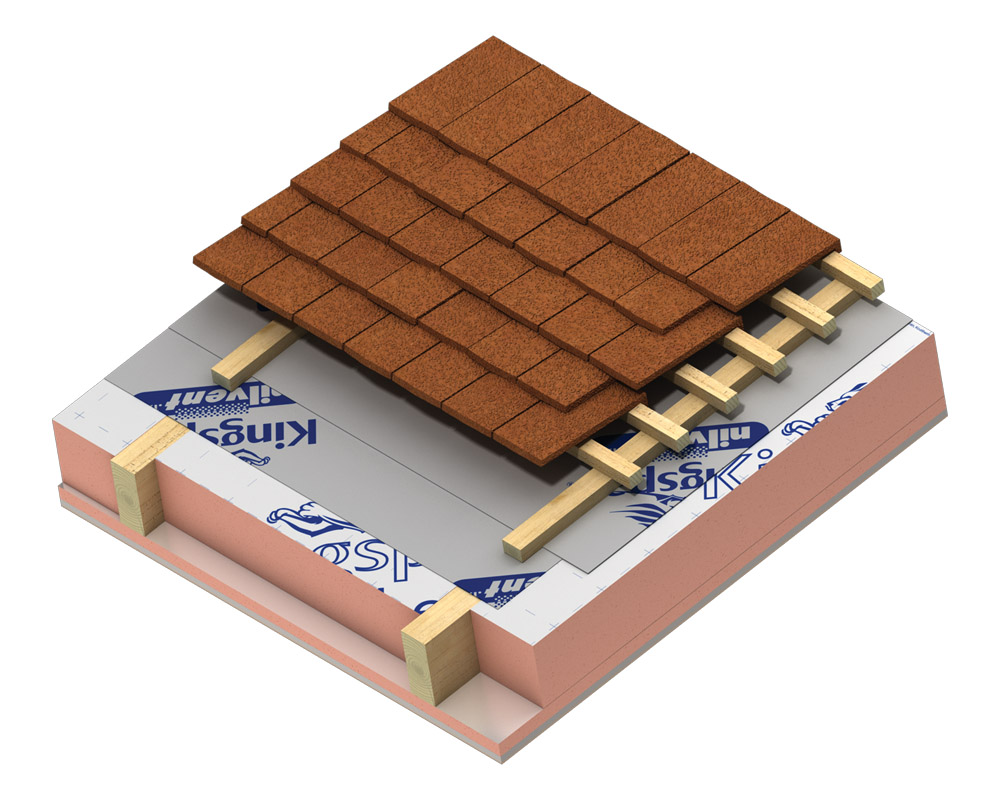

• Application: Suitable for use in tiled or slated pitched roofs, dwarf walls, attic floors, dormer windows, and flat ceilings.
• Retrofitting: These insulation boards can be easily retrofitted when converting an attic without the need for re-roofing.
• Efficient Installation: The boards are easy to cut and handle, ensuring an efficient installation process.
• Thinness: One of the thinnest commonly used insulations for pitched roofs, allowing you to achieve U-values with minimal thickness.
• Sagging Resistance: Kooltherm K107 is not susceptible to sagging over time.
• Energy Savings: The low emissivity foil facing reduces heat loss through the roof, potentially saving on energy costs.
• ISO 9001: 2015 (Quality Management Systems. Requirements)
• ISO 14001: 2015 (Environmental Management Systems. Requirements)
• ISO 45001: 2018 (Occupational Health and Safety Management Systems)
What is phenolic insulation? Phenolic insulation, like our Kooltherm range, is the most thermally efficient insulation commonly used. It consists of a rigid thermoset foam core sandwiched between two facing elements, such as a low emissivity composite foil. Choosing phenolic insulation allows you to achieve low target U-values with minimal insulation thickness.
How is Kooltherm made? Kooltherm’s rigid thermoset foam forms an insulating core between two facing elements. Wet foam insulation mix is added to the bottom layer of facing, which expands to meet the top layer. As it dries, the foam bonds to the facings, resulting in the insulation boards.
Difference between Kooltherm and Therma? Kooltherm is the thinnest commonly used insulation board for specific U-values. Therma is a range of PIR insulation boards, not as thermally efficient as Kooltherm.
What is the U-value of Kingspan insulation? U-value represents the insulating effectiveness of a building element (e.g., roof, wall, or floor). Our technical team can calculate the U-value for your project based on specific details.
