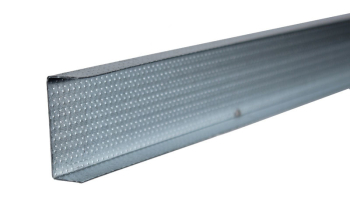

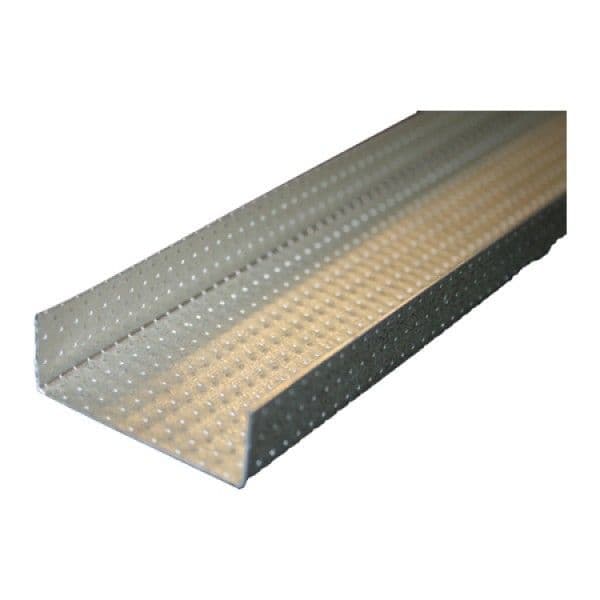

MF7 Primary Support Channel Pack of 10
Sturdy Support for suspended ceilings
£36.50 (£43.80 inc VAT)
Product Code: MF7-36Estimated delivery in 3-5 working days
Free delivery for orders over £350.00
ADDITIONAL INFORMATION
• Material
Galvanised steel
• Length
3600mm
• Width
45mm
• Thickness
15mm
• Weight
0.49 kg/m
• Guage
0.90mm
• Yield Strength
210 N/mm²
The MF7 Primary Support Channel provides a strong and stable backbone for suspended ceilings, ensuring they remain rigid and secure. Its robust design prevents warping and twisting, even under the weight of heavy multi-layer board linings.
• High Strength and Rigidity
Engineered from 0.9 gauge UltraSTEEL® to prevent warping and twisting.
• Versatile Application
Suitable for both single and multi-boarded ceiling systems.
• Fire Resistance
Rated A1 for reaction to fire, ensuring safety in various environments.
• Easy Installation
Designed to be suspended from the soffit, forming a stable base for ceiling sections and final linings.
• Environmental Product Declaration (EPD)
This certification confirms the product’s environmental impact throughout its lifecycle.
• Declaration of Performance (DoP)
This document outlines the product’s compliance with the relevant European standards, specifically EN 14195:2005.
• Fire Resistance Rating
Classified as A1 for reaction to fire, indicating non-combustibility.
What is the MF7 Primary Support Channel used for? It is used to provide the main support structure in suspended ceiling systems, ensuring rigidity and stability.
What materials is it made from? It is made from 0.9 gauge UltraSTEEL®, which offers enhanced strength and rigidity.
What are the dimensions of the MF7 Primary Support Channel? The channel is 3600 mm in length, 45 mm in width, and 0.9 mm in thickness.
Is the MF7 Primary Support Channel fire-resistant? Yes, it has a fire-resistance rating of A1, indicating it is non-combustible.
What standards does it comply with? It complies with EN 14195:2005, which sets the requirements for metal framing components used in gypsum plasterboard systems.

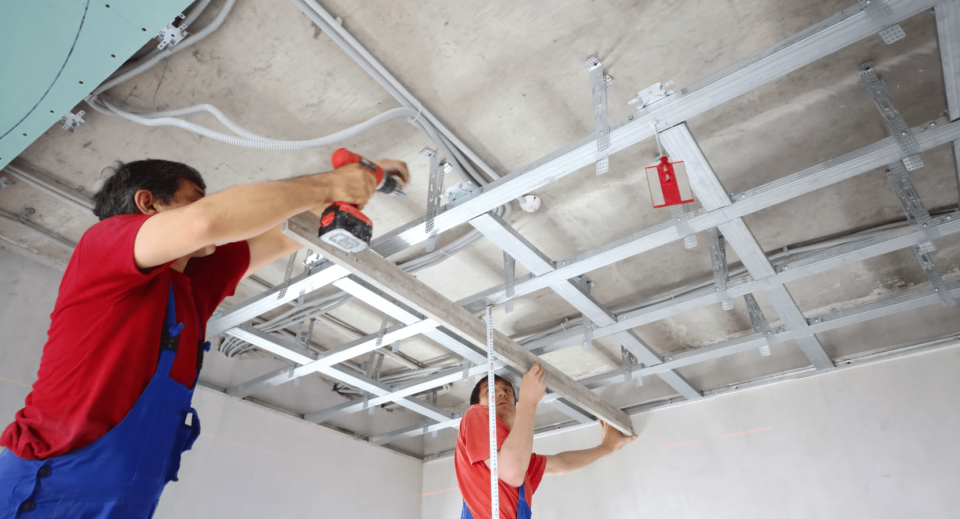

How is it installed? The channel is suspended from the soffit to form the base for ceiling sections and final linings. It is typically fixed at 1000 mm centres.
Are there any certifications for this product? Yes, it has an Environmental Product Declaration (EPD) and a Declaration of Performance (DoP), ensuring it meets high standards for safety, performance, and environmental impact.
