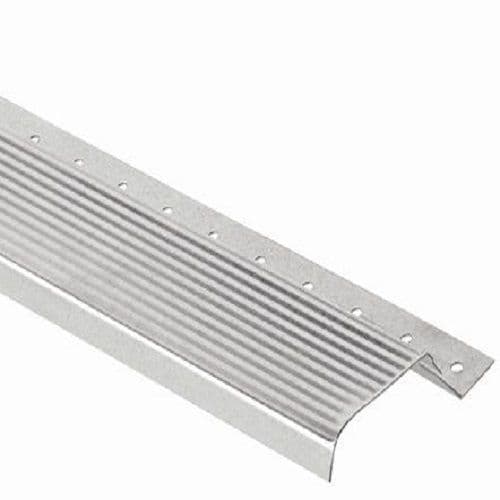

Resilient Bar RB1 Pack of 10
Right Angle Bars for Ceiling Support
£24.90 (£29.88 inc VAT)
Product Code: RB1-10Estimated delivery in 3-5 working days
Free delivery for orders over £350.00
ADDITIONAL INFORMATION
• Material
Cold-rolled steel using UltraSTEEL®
• Length
3000mm
• Width
16mm
• Thickness
0.45mm
• Fire Rating
Reaction to fire classification A1
• Yield Strength
210 N/mm².

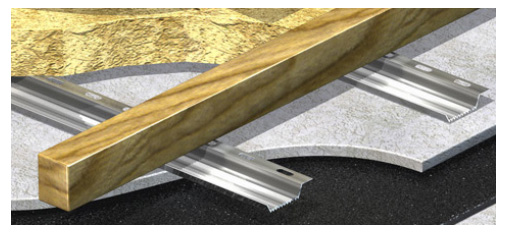

The RB1 Resilient Bar is designed to reduce noise transfer through walls and ceilings by isolating plasterboard linings from the main structure, thereby minimizing sound-induced vibrations. This makes rooms quieter and enhances acoustic performance in building interiors.
• Noise Reduction
Effectively cuts noise transfer through walls and ceilings by isolating plasterboard linings from the main structure.
• Strength
Made from rigidized Gypframe metal for extra strength.
• Easy to Install
Quick and easy to fit.
• Environmental Rating
Achieves a BES 6001 ‘Excellent’ rating for responsible sourcing
• EN 14195:2005
Metal framing components for gypsum plasterboard systems.
• EN 10162:2003
Cold rolled steel sections.
• ASTM C645
Standard specification for non-structural steel framing members.
• Environmental Product Declaration (EPD)
Available for sustainability and environmental impact.
What is the RB1 Resilient Bar used for? The RB1 Resilient Bar is designed to reduce noise transfer through walls and ceilings by isolating plasterboard linings from the main structure. This helps to minimize sound-induced vibrations, making rooms quieter.
At what centres are RB1 Resilient Bars installed within partitions and ceilings? They are typically installed at a maximum of 600mm centres in partitions (400mm centres if ceramic tiling is involved) and at a maximum of 450mm centres in ceilings.
What are the dimensions of the RB1 Resilient Bar? The standard dimensions are 3000mm in length, 16mm in width, and 0.45mm in thickness.
What standards does the RB1 Resilient Bar comply with? It complies with the EN 14195:2005 standard, which covers metal framing components for gypsum plasterboard systems.
How should the RB1 Resilient Bar be stored and handled? It should be stored indoors where possible. If stored outdoors, it should be covered with an anchored polythene sheet or tarpaulin to protect it from dampness and rain. When handling, wear puncture-resistant protective gloves, sleeves, and appropriate safety footwear.
